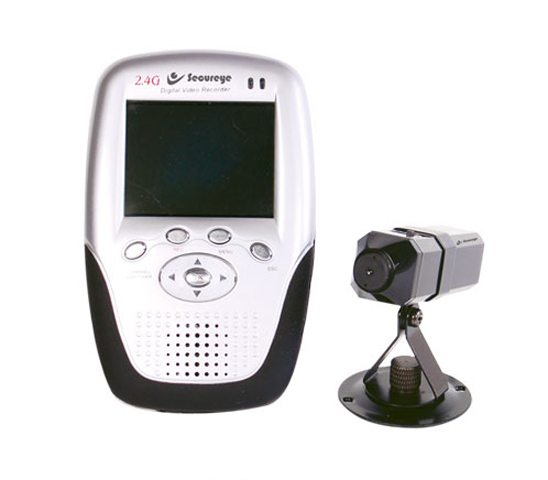

Standone 4 Channel DVR & Wireless Camera

WL-DVR-40/WL-CAM-10

    DVR
  • 4 Channel Receiver
  • 2.5” TFT Transactive LCD (960×240)
  • Compressed Video Format: MPEG4
  • Storage Media: SD Card
    Camera
  • 1/4” Color Cmos
  • 420 TV Line
  • In-Built Rechargeable Battery
  • 1.5 Lux/F 1.5 Min Illumination
enquiry
Download
Technical Specification
Wireless Receiver Receiver channel 4CH
Receiver Channel CHI: 2414MHZ: CH2:2432MHZ:CH4:2468MHZ
D6 Level -90db
Video Frequency Property Fm2.4MHZ
LCD 2.5 TFT 960x240 Trans active LCD
Video Outmode NTSC/PAL
Video Mode NTSC/PAL
Resolution 640/480/320/240
Compressed Video Format MPEG-4/AVI/ASF/MOV
Play Files Format MPEG-4/AVI/ASF/ADPCM
Audio Frequency Range 20HZ-20KHZ
Output Channel Stereo
Earphone Output L20MW + R 20Mw (160) Max Volume
Play file format MP3/WAV/MPEG-1
Speaker 1.5 W
Picture File Format JPG/JPEG/TIF/TIFF
Storage Flash Memory 128MB/4GB
Storage media SD/MMC/U/ Disk/HDD
Operating PC Windows 98SE, ME, 2000, XP
System Supported Serial Bus Serial Bus 2.0, USB OTG 2.0
Disk File Format FAT 32
Language Chinese/English
Battery Internal Battery Li-ion Battery 1800Mah
Stand By Time Wireless Recorder >3 hrs
Player >5 hrs
Camera Specification Image Pickup 1/3 CNOS
Definition 1/3 CNOS
Resolution PAL 682x582 NTSC 510x482
Angle 62
Lux 1.5 LUX /F 1.5
Lens Adjustable Focus
TV System PAL or NTSC
Scan Frequency 2.4GHZ
Transition Distance with good Environment 100m
Frequency FM 15M 2400MHZ ~ 2484MHZ Channels
Channel Frequencies CHI:2414MHZ, CH22432 MHZ
Signal Power 100MW
Power +5V (DC)
Lipo Battery Capacity 500Mah
Net Weight 60g
Size 72/22/22m
