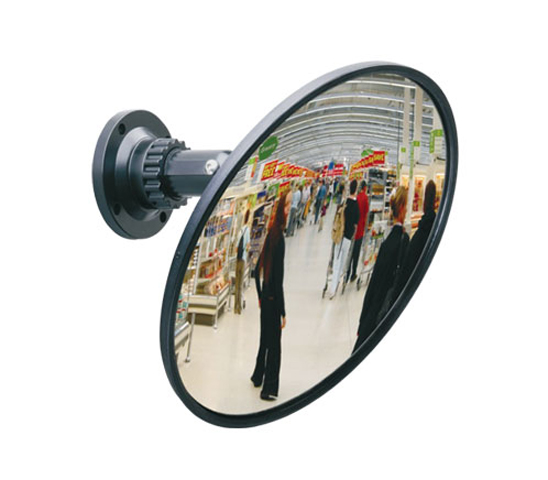

Mirror Camera – 40cm

SM40-480

  • 1/3" CCD Camera
  • 480 TV Lines of Horizontal Resolution
  • 0.1 Lux/F1.2 Min. Illumination
  • 3.6 mm Fixed Board Lens
  • DC 12V
enquiry
Download
Technical Specification
Image Sensor 1/3″ Color CCD
Signal System PAL
Lens 3.6mm
Sync. System Internal
Scanning System NTSC525 lines 2:1 interlace, PAL625 lines 2:1 interlace
Scanning Frequency NTSC15,734Hz(H) , 60Hz(V), PAL15,625Hz(H) , 50Hz(V)
Horizontal Resolution 480TVL
S/N Ratio 48dB (AGC Off)
Minimum Illumination 0.1 Lux/F 2.0
White Balance Auto 2500-9500 K
Electronic Shutter (sec) 1/60(1/50) ~ 1/100,000
Auto Gain Control Auto
DNR Yes
Video Output 1.0 Vp-p, 75 Ohm
Gamma Correction 0.45
Power Supply DC 12V
Operation Temperature -20°C ~ + 60°C ,
