Power solution on Coaxial Cable

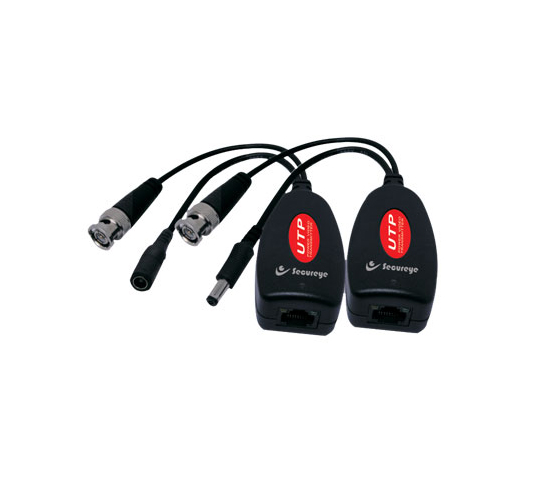

S-UTP

  • Transmission Distance: 300 Meters
  • Input Power Supply: 12V DC 1.5Amp
  • Connector: Standard AC JACK
  • Max Output Current: 2.8Amp
  • Signal Band: 250MHz (-3db)
  • Interference Rejection: >60db
  • Video Output Connectors: BNC Male
enquiry
Download
Technical Specification
Transmission Distance 300 Meters
Wire Category Cat 5/5e/6 UTP cable
Output power supply 1CH*12V 1500MA
Input Power Supply 12V DC 1.5Amp
Connector Standard AC JACK
Max Output Current 2.8Amp
Compatible with All baseband signals, including PAL, NTSC, SECAM
Signal Band 250MHz (-3db)
Balance Band 0~6MHZ
Attenuation <1.5db
Interference Rejection >60db
Video Output Connectors BNC Male
UTP Cable Connectors RJ-45, impedance: 100Ù
Video output protection 2KV (common mode), 10/700us IEC61000-4-5
Video input protection 2KV (different mode), IEC61000-4-5, 4KV (common mode) 10/700us
Connection status Normal (LED ON); Abnormal (LED OFF)
Working Temperature -20 C ~ +70 C
Relative Humidity 0--95% (no condensing)
